Output
· Output power capacity: 10.0 KWatts / 10.0 kVA
· Max Configurable Power (Watts): 10.0 KWatts / 10.0 kVA
· Nominal Output Voltage: 230V
·Output Voltage Distortion: Less than 2%
· Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
· Other Output Voltages: 220, 240
· Load Crest Factor: 3 : 1
· Topology: Double Conversion Online
· Waveform type: Sine wave

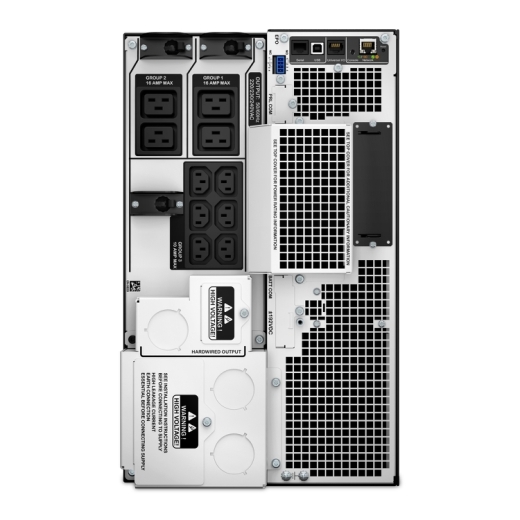

· Output Connections
(6) IEC 320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G)
(3) IEC Jumpers (Battery Backup)
· Bypass: Internal Bypass (Automatic and Manual)
- Input
·Nominal Input Voltage: 230V , 400V 3PH
· Input frequency: 40 - 70 Hz (auto sensing)
· Input Connections: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
· Input voltage range for main operations: 160 - 275V
· Input voltage adjustable range for mains operation: 100 - 275 (half load), 173 - 476 (half load)V
· Other Input Voltages: 220, 240, 380, 415
Batteries
· Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
· Typical recharge time 1.5hour(s)
· Nominal Battery Voltage +/-192 V (split battery referenced to neutral)
· Replacement Battery: APCRBC140
· Expected Battery Life (years) 3 - 5
· RBC Quantity 2
· Extendable Run Time 1
- Communications & Management
· Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

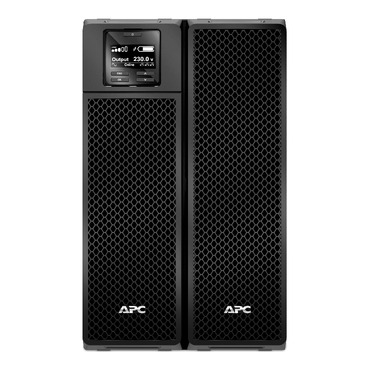

· Control panel Multi-function LCD status and control console
· Audible Alarm Audible and visible alarms prioritized by severity
· Emergency Power Off (EPO) Yes
· Available Smart
· Slot™ Interface Quantity 1
