SRV2KI: APC Easy UPS SRV 2000VA 230V

Print Technical Specification

Output

· Output power capacity: 1.6 KWatts / 2.0 kVA

· Max Configurable Power (Watts): 1.6 KWatts / 2.0 kVA

· Nominal Output Voltage: 230V

· Output Voltage Distortion: 3%

· Output Frequency (sync to mains): 50/60Hz +/- 3 Hz

· Other Output Voltages: 220, 240

· Load Crest Factor: 3: 1

· Topology: Double Conversion Online

· Waveform type: Sine wave

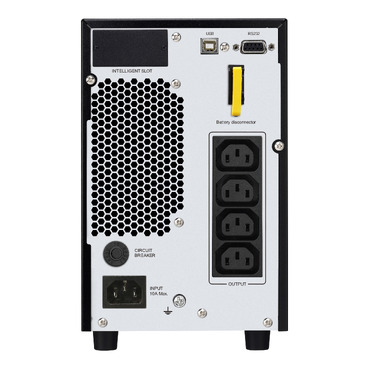

· Output Connections: (4) IEC 320 C13 (Battery Backup)

Input

· Nominal Input Voltage: 230V

· Input frequency: 40 - 70 Hz

· Input Connections: IEC-320 C14

· Input voltage range for main operations: 160 - 280V

· Number of Power Cords: 1

Batteries & Runtime

· Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

· Typical recharge time: 4hour(s)

Communications & Management

Interface Port(s): USB

· Control panel

Multi-function LCD status and control console

· Audible Alarm

Alarm when on battery: distinctive low battery alarm : overload continuous tone alarm
